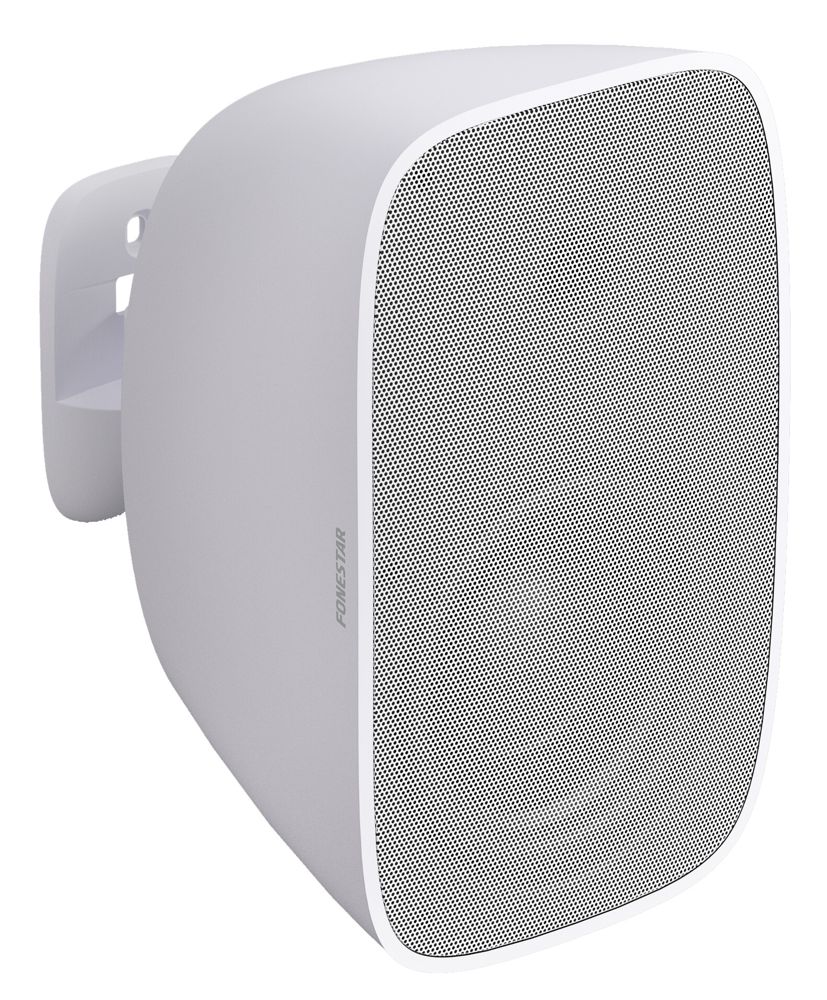

Sound reinforcement loudspeaker with 100 V line transformer and low impedance.
Based on our extensive experience in the sound sector, FONESTAR has created SONORA.
SONORA is a series of speakers specially designed for PA, musical and background sound applications.
Its excellent finish and elegant design allow perfect integration in any space.
They are fully prepared for outdoor use as they feature aluminium grille and protection against water (IP-66) and marine environments.
Besides, SONORA delivers high sound quality with clear, distortion-free sound.
They include all the necessary accessories for easy and quick installation: weatherproofed adjustable fixing mount, stainless steel screws and steel safety cable.
For public address and ambient sound applications in public places such as restaurants, cafés, supermarkets, shopping centres, etc.
- Low impedance loudspeaker with 100 V line transformer.
- Suitable for outdoor use, waterproof and rustproof materials.
- 40 W RMS
- 80 W max
- 1 x 5 ¼" polypropylene woofer
- 1 x 1" tweeter
- 80-20,000 Hz
- 40 W RMS@100 V (250 Ω)
- 20 W RMS@100 V (500 Ω)
- 10 W RMS@100 V (1,000 Ω)
- 5 W RMS@100 V (2,000 Ω)
- Low Z: 8 Ω
- 88.3 dB @ 1 W/1 m
- 102.2 dB @ máx. W/1 m
- H/V: 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz (-6 dB)
- IP-66 in compliance with EN 60529
- IEC 60068-2-11 Enviromental Test (Salt mist)
- ABS (UV resistance)
- Aluminium mesh grille, with powder-coated finish
- Weather-resistant mount
- Stainless steel screws
- W selector in high Z and low Z
- Euroblock in and out for cable 0.25 - 2.5 mm² cross section
- -10ºC ~ 60ºC
- Loudspeaker: 162 x 263 x 147 mm depth
- Mount wall plate: 68 x 110 mm
- Loudspeaker with mount: 216 mm depth
- 2.2 kg
- Adjustable mounting bracket ± 60º in all directions.
- Steel safety cable
