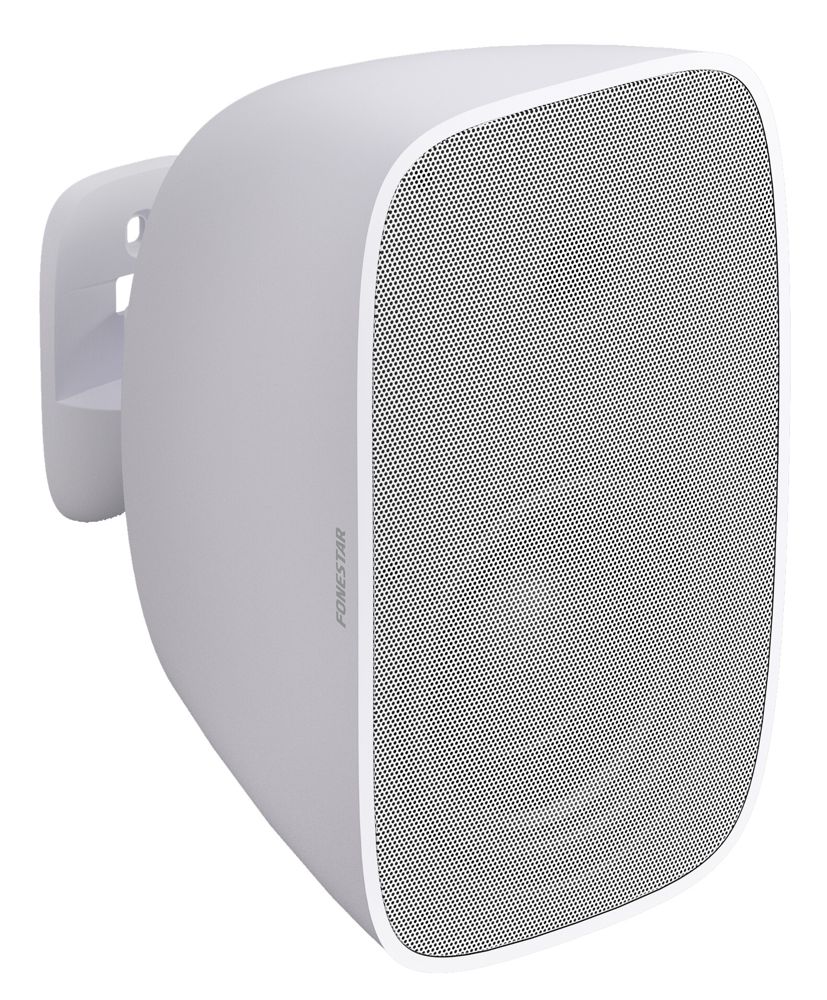

PoE active loudspeaker for AIP systems
Based on our extensive experience in the sound and PA sector, FONESTAR has created SONORA-AIP.
SONORA-AIP is a series of active PoE loudspeakers with IP audio player and SIP client, specially designed for PA and background sound applications.
Enables playback of backgroud music, scheduled and instant messages, alarms and voice announcements via the local area network (LAN).
The excellent finish and elegant design allow for perfect integration in any space.
In addition, SONORA-AIP provides high sound quality, with a clear and distortion-free sound.
They integrate microphone for SPL function and auto-check, with which ambient sound pressure values are captured for automatic zone volume configuration.
They have a passive speaker output with euroblock connectors, an auxiliary audio input with jack plug and a programmable isolated input with secure, easy-to-connect euroblock connectors.
All necessary accessories for a simple and quick installation are included: adjustable fixing mount, stainless steel screws and steel safety cable.
AIP is a 100% scalable solution, with unlimited devices and AIP channels, with auto-discovery service when connected to the network and an intuitive configuration and control software (AIP-Go).
PA and background sound installations for restaurants, schools, cafeterias, supermarkets, shopping centres, etc.
- General purpose input.
- Remote update via PC software or locally via USB.
- PoE active loudspeaker for AIP systems with IP audio player and SIP client.
- Class D amplifier.
- Passive speaker output.
- High sound quality, clear and distortion-free sound.
- Built-in microphone for SPL function and auto-check, captures ambient sound pressure values for automatic volume setting of the zones.
- Allows streaming audio reception via multicast via local area network (LAN).
- Operating status indicator.
- 20 + 20 W RMS (POE, 60W)
- 25 + 25 W RMS (24V DC, 3.125 A, 75W)
- 1 x 5 ¼" polypropylene woofer
- 1 x 1" tweeter
- 80-20,000 Hz
- H/V: 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz (-6 dB)
- ABS (UV resistance)
- Aluminium mesh grille, with powder-coated finish
- Weather-resistant mount
- Stainless steel screws
- 1 programmable isolated input for event triggering by contact closure, euroblock
- 1 stereo aux, 3.5 mm jack
- USB port for software update
- 1 x 10/100 Base T ethernet, RJ-45
- -10ºC ~ 60ºC
- Operational status
- 1 x 60 W POE ethernet ,RJ-45 or 24 V DC, 75 W, euroblock
- Loudspeaker: 162 x 263 x 147 mm depth
- Mount wall plate: 68 x 110 mm
- Loudspeaker with mount: 216 mm depth
- 1.9 kg
- Adjustable mounting bracket ± 60º in all directions.
- Steel safety cable
