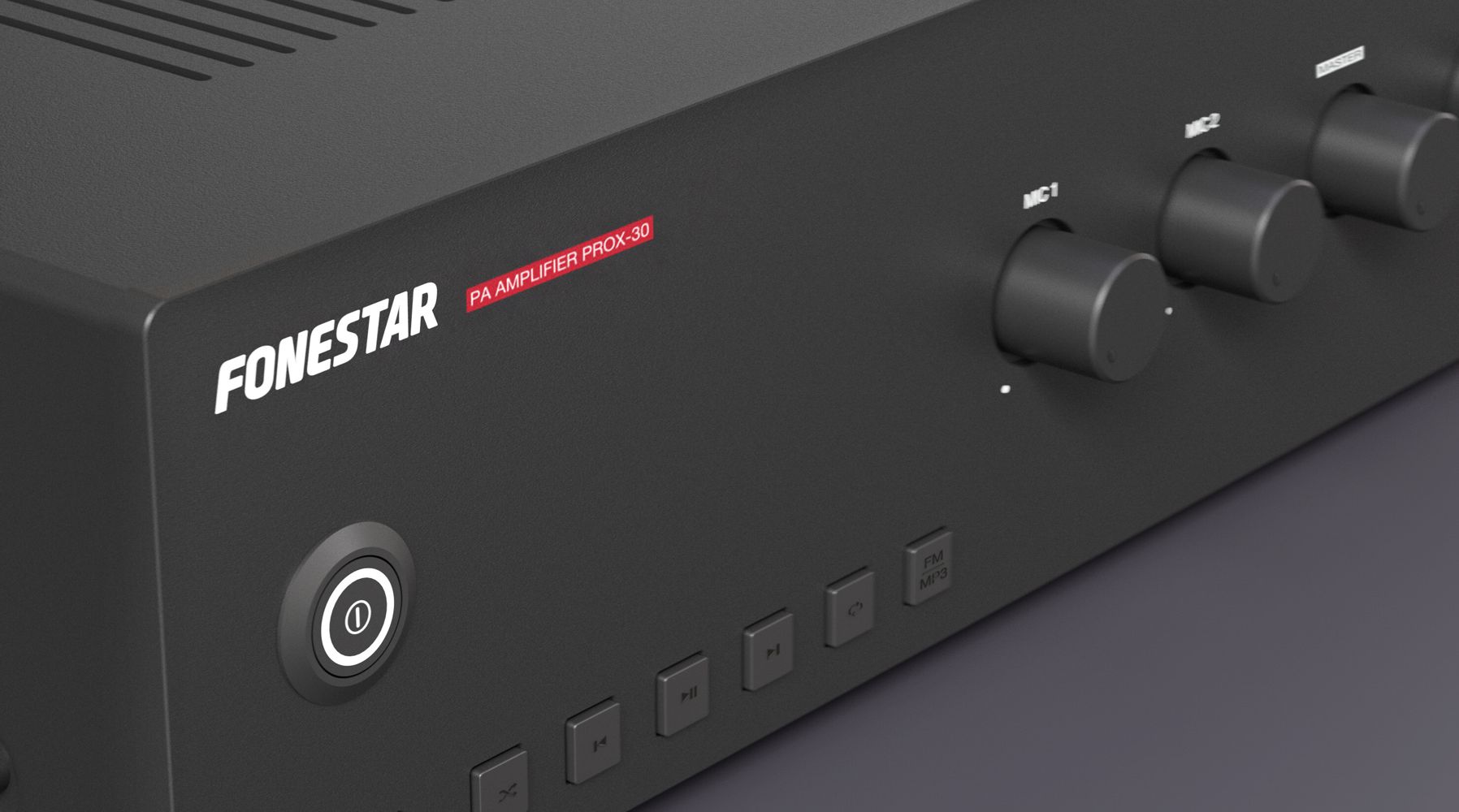

Public address amplifier with USB/FM Player
A perfect solution integrating amplifier, mixer, player, microphone and auxiliary inputs in a single unit, for PA installations with 100 V or low impedance loudspeakers requiring intuitive operation on a tight budget.
Secure, easy-to-connect euroblock connectors.
Excellent sound quality.
Modern and discreet design.
Compact size, for desktop use.
Perfect for PA and piped music systems with 100 V or low-impedance line. Commercial premises, educational centres, monuments, exhibitions, bars, restaurants, etc.
Amplifier
Features
- 100 V and 4 Ω outputs
- Microphone input with mix, gain and priority level control
- Public address amplifier
- Tone controls
- USB/FM player
Power
- 30 W RMS
Response
- 20-20,000 Hz ± 3 dB
Distortion
- Harmonic: < 1% @ 1 kHz
Player
- FM digital tuner with presets and auto-scan
- Memory of last selected mode (USB or FM), last played song or last tuned station
- Starts playback in successive order
- USB player with background music playback mode. When switched on, automatically starts playback
Inputs
- 1 balanced / unbalanced mic, euroblock / 6.3 mm jack, 600 Ω 6 mV RMS
- 1 balanced mic, euroblock, 600 Ω 6 mV RMS
- 1 line 100 V, euroblock
- 2 aux, euroblock / 2 x RCA, 47,000 Ω 300 mV RMS
Functions
- 100V Emergency input with maximum priority, attenuates all other inputs
- Fanless induction cooling
- Microphone 1 and 2 with priority over Aux and Playback inputs, by signal level, selectable
- Mute by contact closure, attenuates all inputs except the 100V Emergency input
- Power on, protection, signal peak and output signal indicator lights
Controls
- Input selector
- Microphone gain and priority
- Microphone volume
- Selected input volume
- Tone: bass and treble
- USB/FM player controls
Impedance
- 4 Ω and 100 V line, euroblock
Power supply
- 230/115 V AC, 100 W
Dimensions
- 286 x 84 x 252 mm depth
Weight
- 3.8 kg
Accessories
- FM antenna
