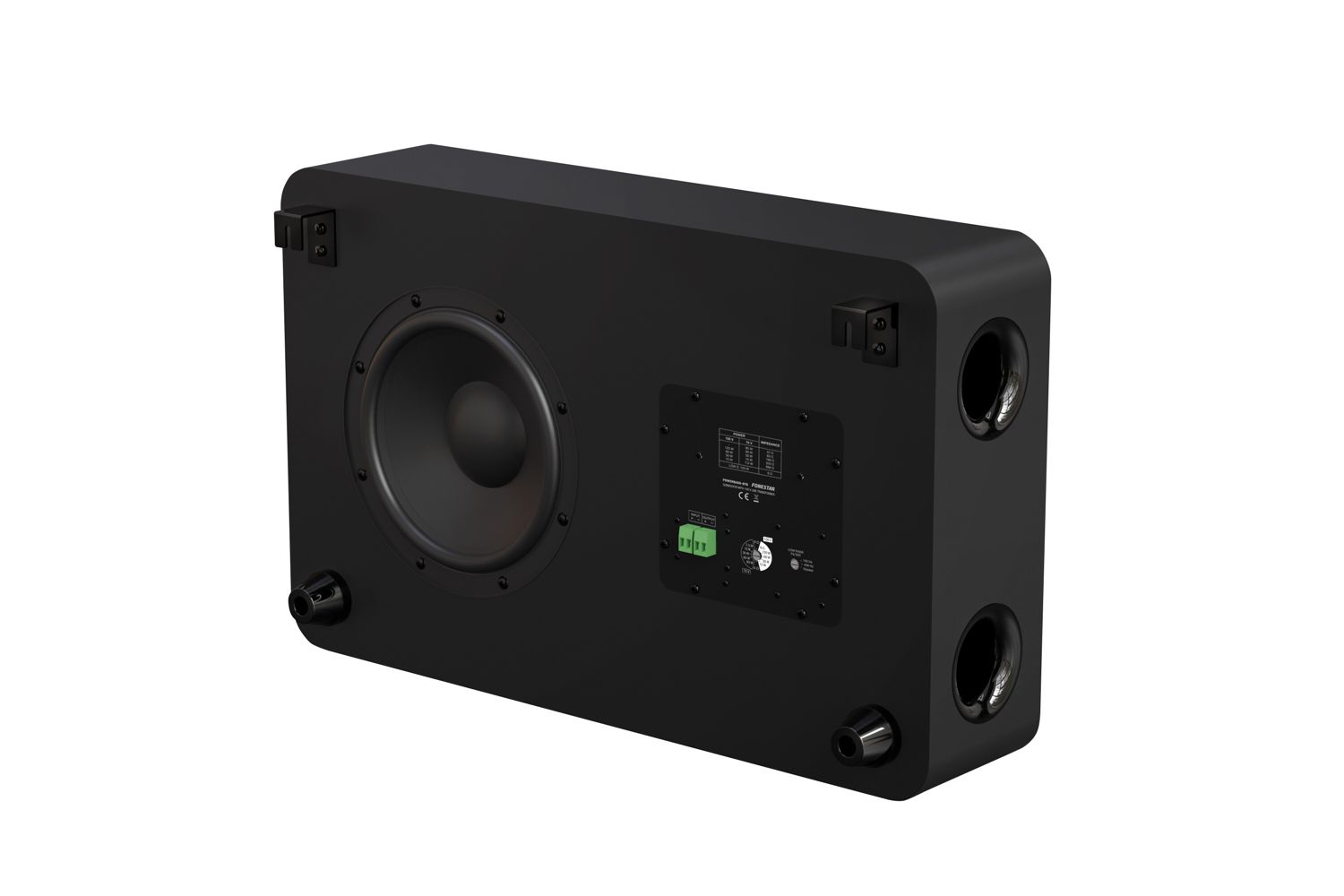

Subwoofer speaker with 100 V line transformer and low impedance
Subwoofer with excellent bass response, for sound reinforcement in ambient music.
Improves the bass content of the music, offering deep and powerful bass without distortion.
Unique FONESTAR design, with stylised shapes and compact size. Available in black or white.
Can be installed on the floor or wall and easily goes unnoticed in any space.
Fully protected loudspeaker.
Several options for transformer power selection and low impedance connection that allows it to be adapted to any installation.
It incorporates a low pass filter, which allows its frequency response to be adjusted according to the type of music and features of the premises.
Bass reflex reinforcement, which takes advantage of the rear radiation of the loudspeakers to boost the bass.
Perfect for ambient music applications for the retail sector, bars, cafés, etc.
- 100/70 V line driver and low impedance.
- Bass-reflex reinforcement system.
- Excellent bass response for reinforcement of bass music content.
- Subwoofer speaker for background music applications.
- Unique FONESTAR design.
- Wall or floor/shelf installation.
- 120 W RMS (IEC 60258-5 Average rated power, 100 hours)
- 1 x 8'' polypropylene subwoofer
- 47-300 Hz (-10 dB) @ FPB 150 Hz
- 47-400 Hz (-10 dB) @ FPB 400 Hz
- 47-650 Hz (-10 dB) @ Bypass
- 120 W RMS @ 100 V (83 Ω)
- 15 W RMS @ 100 V/70 V (666 Ω/333 Ω)
- 30 W RMS @ 100 V/70V (333 Ω/166 Ω)
- 60 W RMS @ 100 V/70 V (166 Ω/83 Ω)
- 7.5 W RMS @ 70 V (666 Ω)
- 85 W RMS @ 70 V (57 Ω)
- Low Z: 6 Ω
- 85 dB @ 1 W/1 m
- 103 dB @ rated power/1 m
- IP-66 in compliance with EN 60529
- IEC 60068-2-11 Enviromental Test (Salt mist)
- MDF
- Low pass filter selector: 150 Hz / 400 Hz / Bypass
- W selector in high Z and low Z
- Euroblock in and out for cable 0.25 - 2.5 mm² cross section
- -10º ~ 50ºC
- 545 x 150 x 337 mm depth
- 9.1 kg
- Screws and mounting accessories
- Wall mounting brackets
- Ceiling mount in option: POWERBASS-CMB
