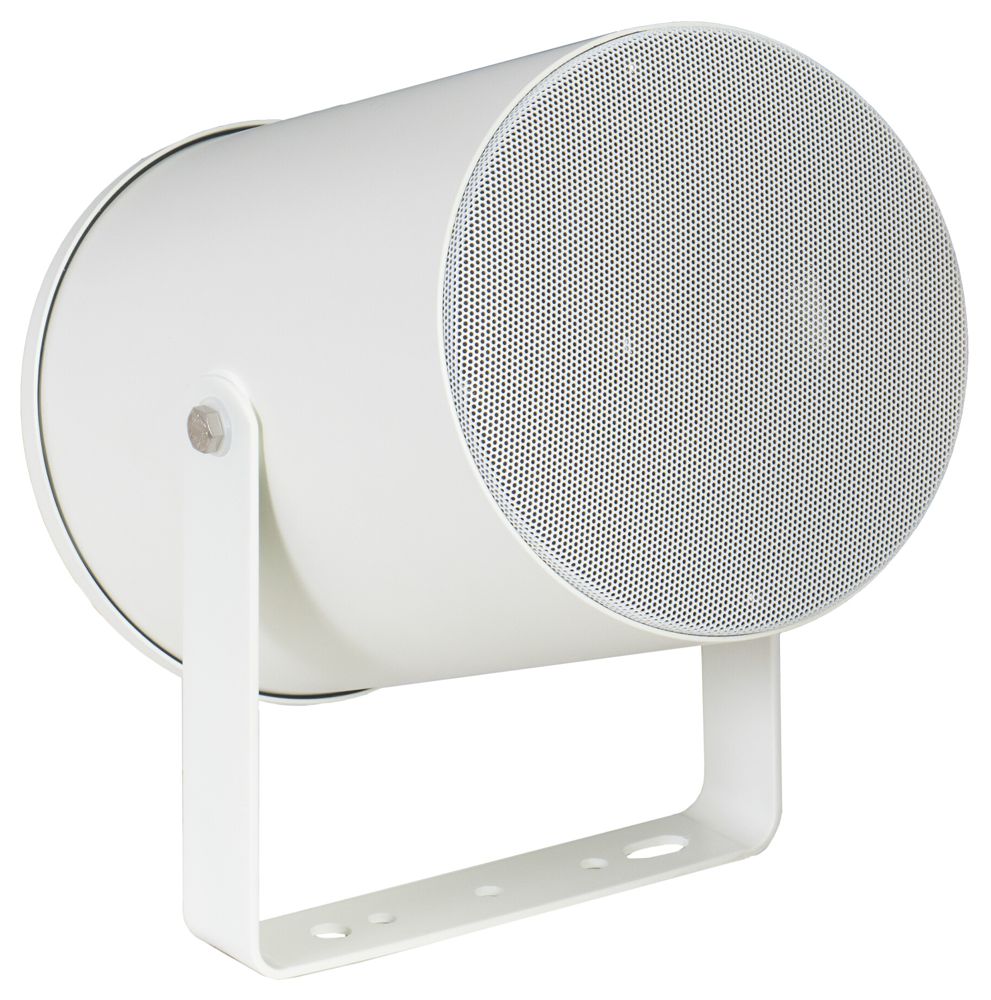

Sound Projector EN 54
Sound projector with 100 V line transformer and fireproof case.
With the best performance, design and construction in accordance with the European EN 54 standard.
Steel built with metal grille and fireproof components, ceramic connectors, flame retardant material cables and thermal fuse, which guarantee its integrity and operation in alarm and/or emergency situations.
It delivers crisp, clean sound, perfect for both speech and background music.
With a coverage angle of 90º at 4kHz and a sensitivity of 80 dB at 1 W/4 m they can allow homogeneous surface sound coverage.
Includes adjustable fixing mount for easy installation, minimising assembly time.
For evacuation systems in accordance with European standard EN 54 for shopping centres, hospitals, business centres, sports facilities, industrial buildings, etc.
- EN 54 certified sound projector with 100 V line transformer.
- EN 54-24 certified
- 30 W max
- 20 W RMS
- 5" double cone Hi-Fi
- 130-20,000 Hz (-10 dB)
- 10 W RMS@100V (1,000 Ω)
- 20 W RMS@100V (500 Ω)
- 5 W RMS@100V (2.000 Ω)
- 80 dB a (1W/4m, Pink Noise)
- 91 dB (1 W/1 m, 1 kHz)
- 103 dB (Max. W/1m, 1 KHz)
- 90 dB (Max. W/4m, Pink noise)
- 360º@500Hz, 230º@1kHz, 95º@2kHz, 47.5º@4kHz (-6 dB)
- Ceramic connectors and thermal fuse
- Double hole for cable input and output
- Steel with metal grille
- -25ºC - +70ºC
- 146 mm Ø x 207 mm depth
- 2.5 kg
