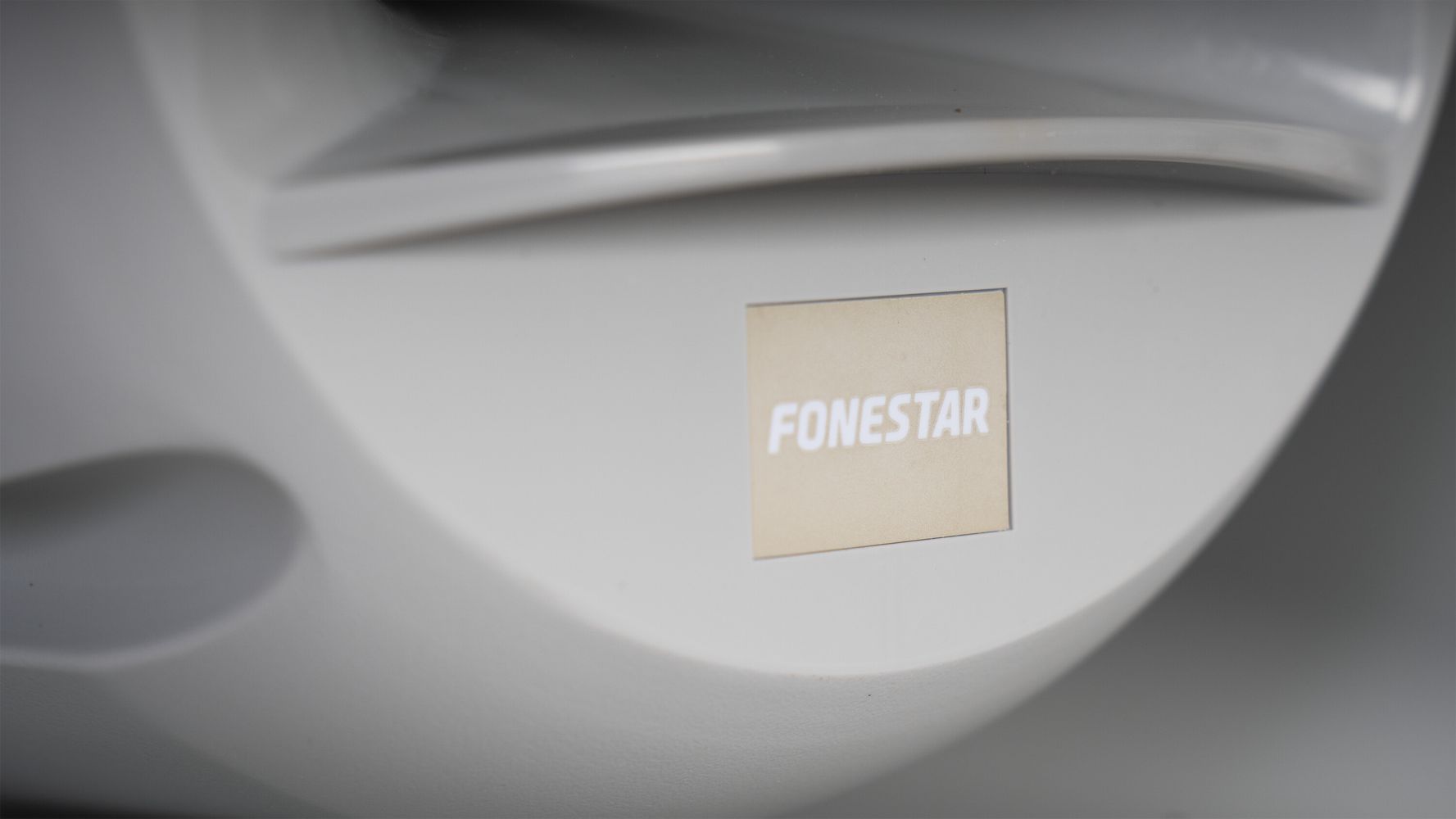

Sound projector with diffuser EN 54
Sound projector with diffuser and 100 V line transformer.
With the best performance, design and construction in accordance with European standard EN 54.
ABS built and fireproof components, ceramic connectors, flame retardant material cables and thermal fuse, which guarantee its integrity and operation in alarm and/or emergency situations.
It delivers crisp, clean sound, perfect for both speech and background music.
Long distance of sound transmission and high directivity for the coverage areas.
Includes adjustable fixing mount for easy installation, minimising assembly time.
For evacuation systems in accordance with European standard EN 54 for shopping centres, hospitals, business centres, sports facilities, industrial buildings, etc.
- EN 54 sound projector with diffuser and 100 V line transformer.
- EN 54-24 certificate
- 30 W RMS
- 50 W max
- 1 x 2 ½'’ tweeter
- 1 x 5'’ woofer
- 120-20.000 Hz (-10 dB)
- 15 W RMS@100 V (667 Ω)
- 3,75 W RMS@100 V (2.667 Ω)
- 30 W RMS@100V (333 Ω)
- 7,5 W RMS@100 V (1.333 Ω)
- 85 dB a (1W/4m, Pink Noise)
- 96 dB (1 W/1 m, 1 kHz)
- 111 dB (Max. W/1m, 1 KHz)
- 99 dB (Max. W/4m, Pink noise)
- 140ºHx180ºV@500Hz, 60ºHx100ºV@1kHz, 90ºHx95ºV@2kHz, 90ºHx140V@4kHz (-6 dB)
- IP-66 (EN54-24: Type B)
- ABS UL94VO
- Ceramic connectors and thermal fuse
- -25ºC - +70ºC
- 315 x 215 x 355 mm
- 5 kg
- Adjustable fixing mount
