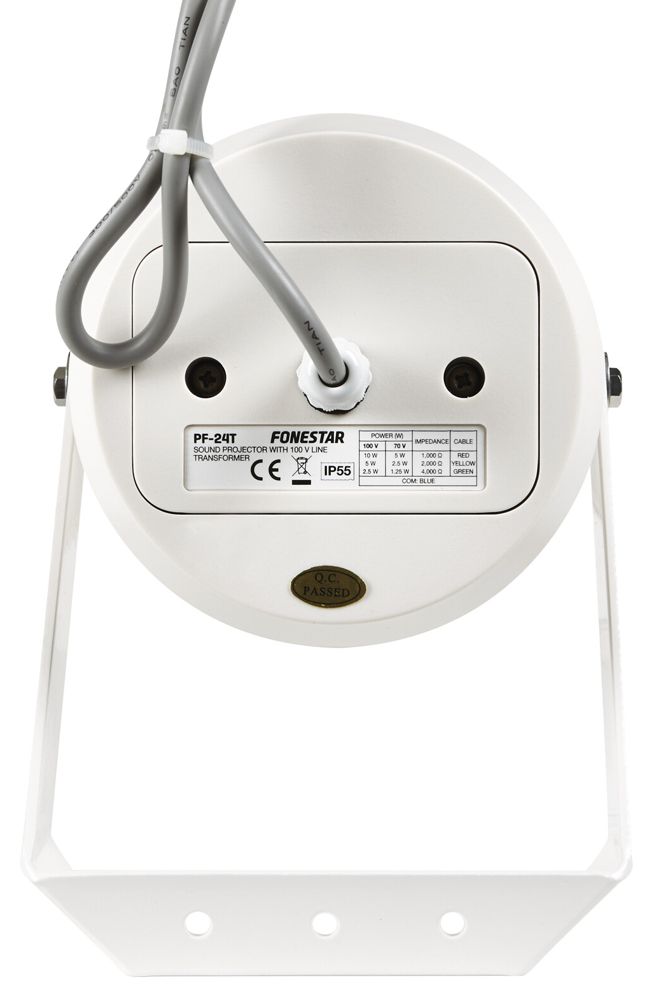

100 V line sound projector
Sound projector with great features, design and construction.
Its characteristics make it very suitable for indoor or outdoor public address installations, IP-55 protection.
It is built in ABS with hermetic casing, which guarantees its integrity and operation in aggressive environments.
It offers a clear and clean sound, perfect for public address and music ambience applications.
With a coverage angle of 130° and a sensitivity of 89 dB at 1 W/1 m, it can reach large distances and cover large areas.
For PA and background music applications in 100 V line installations in shopping centres, schools, hospitals, sports facilities, industrial buildings, etc.
Features
Features
- Sound projector with 100 V line transformer.
Power
- 10 W RMS
- 15 W max
Speaker(s)
- 5" double cone, varnished cardboard and mylar
Freq. response
- 150-15,000 Hz
Impedance
- 10 W RMS@100V (1,000 Ω)
- 2.5 W RMS@100V (4,000 Ω)
- 5 W RMS@100V (2,000 Ω)
Sensitivity
- 89 dB at 1 W/1 m
Max. sound pressure
- 99 dB a máx. W/1m
Coverage angle
- 130°@1kHz, 100º@2kHz, 50º@4khz (-6 dB)
Protections
- IP55 in compliance with 60529
Material
- ABS. Hermetic casing
- Aluminium mount and grille
- Stainless steel screws
Temperature range
- -25℃ ~ 55℃
Colour
White (RAL 9016)
Dimensions
- 138 mm Ø x 205 mm depth
Weight
- 1.6 kg
Accessories
- Adjustable fixing mount
