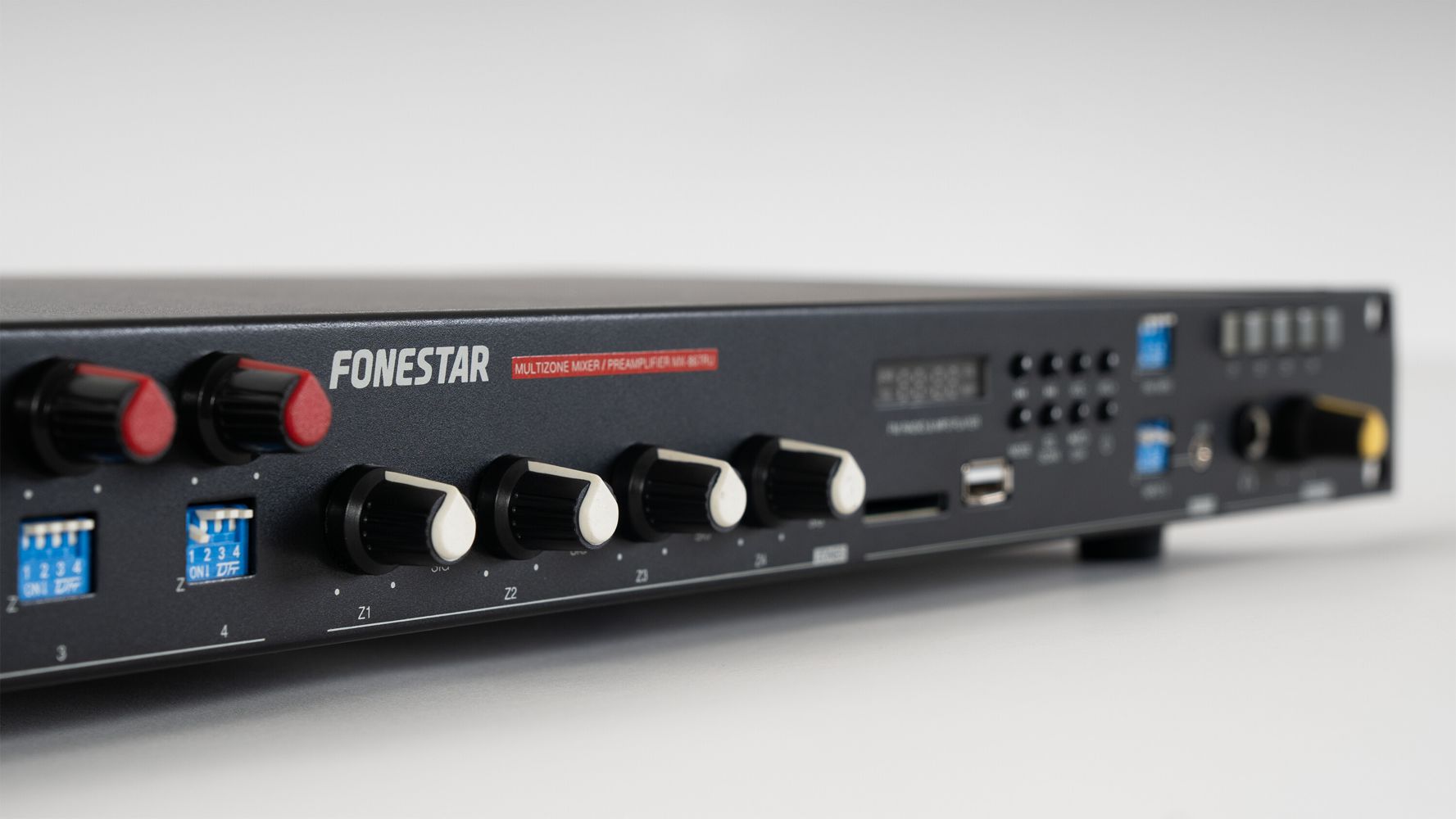

Mixer/preamplifier with 5-channel audio matrix assignable to 4 output zones with independent volume control.
USB/SD player with digital radio FM tuner.
Audio distribution in multi-zone installations with different music programmes. Independent output remote volume control.
Mixer/processor
Features
- 4 speaker zones with independent volume control
- Digital FM radio tuner
- Matrix allocation of 5 input channels to 4 output zones
- Microphone input with paging priority
- Mixer/preamplifier
- Phantom power supply
- Remote zone volume control
- USB/SD player
Inputs
- 1 balanced mic., combo (XLR and 6.3 mm jack), 12 mV RMS
- 1 balanced microphone, 6.3 mm stereo jack, 12 mV RMS
- 1 stereo aux, 2 x RCA, 230 mV RMS
- 1 stereo aux, 3.5 m jack, 450 mV RMS
- 2 balanced mics./lines combo (XLR and 6.3 mm jack) adjustable, 12 mV RMS and 640 mV RMS
Outputs
- 1 stereo monitor, 6.3 mm jack, 1 V RMS
- 4 balanced zones, XLR, 2.5 V RMS
- Remote volume control for the zones
Controls
- 4 micro allocation switches for zones 1 to 4
- FM tuner
- Inputs 1 to 4: volume control
- Inputs 2 and 3: gain control
- Monitor: volume control and zone selection
- USB/SD player
- Zones 1 to 4: volume control
Response
- 20-20,000 Hz
Distortion
- Harmonic: < 0.2 % to 1 kHz
Phantom
- 48 V in mics. 2 and 3, selectable
Priority
- Mic. 1 input level priority, selectable
S/N ratio
- Aux/Line > 80 dB
- Microphones > 65 dB
Power supply
- 230/115 V AC, 9 W
Dimensions
- 483 x 44.5 x 200 mm depth. 1 U 19" rack
Weight
- 3.15 kg
