12-channel microphone mixer with independent volume control and 48V phantom power supply.
The number of microphones in a PA system can easily be increased.
Mixer/processor
Features
- Professional 12-channel mixer / preamp. Phantom power
Inputs
- 12 balanced mics, XLR 600 Ω 2.5 mV
Outputs
- 1 balanced master XLR 600 Ω 7 mV and unbalanced 2 x RCA 4,700 Ω 150 mV
Controls

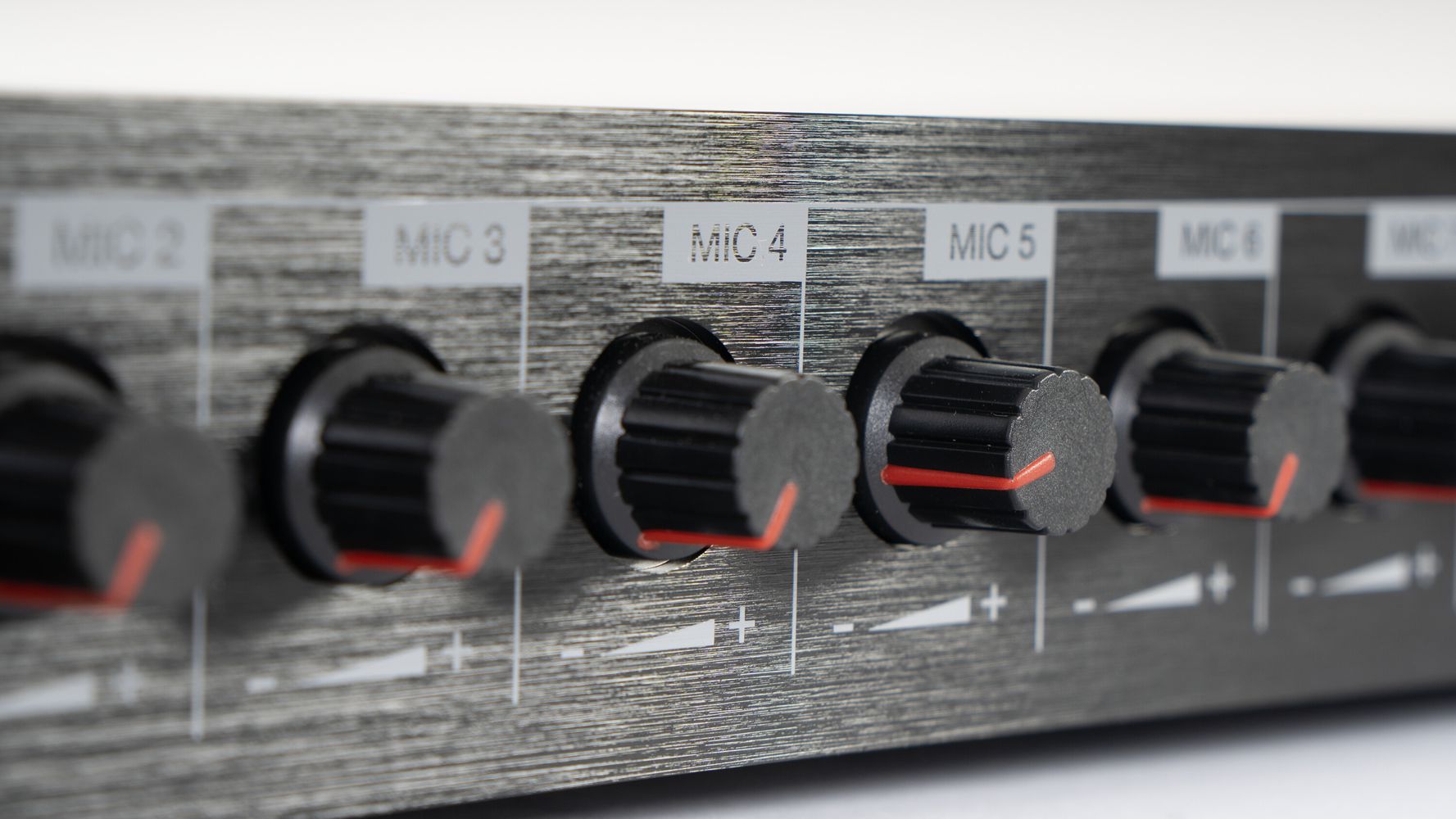

- Volume per master input and output
Response
- 50-20,000 Hz
Phantom
- 48 V on mics 1 to 12, selectable
S/N ratio
- > 60 dB
Power supply
- 230/115 V AC, 10 W
Dimensions
- 483 x 44.5 x 225 mm depth. 1 U 19" rack
Weight
- 2.7 kg
Accessories
- 1 RCA cable
- 1 XLR cable
