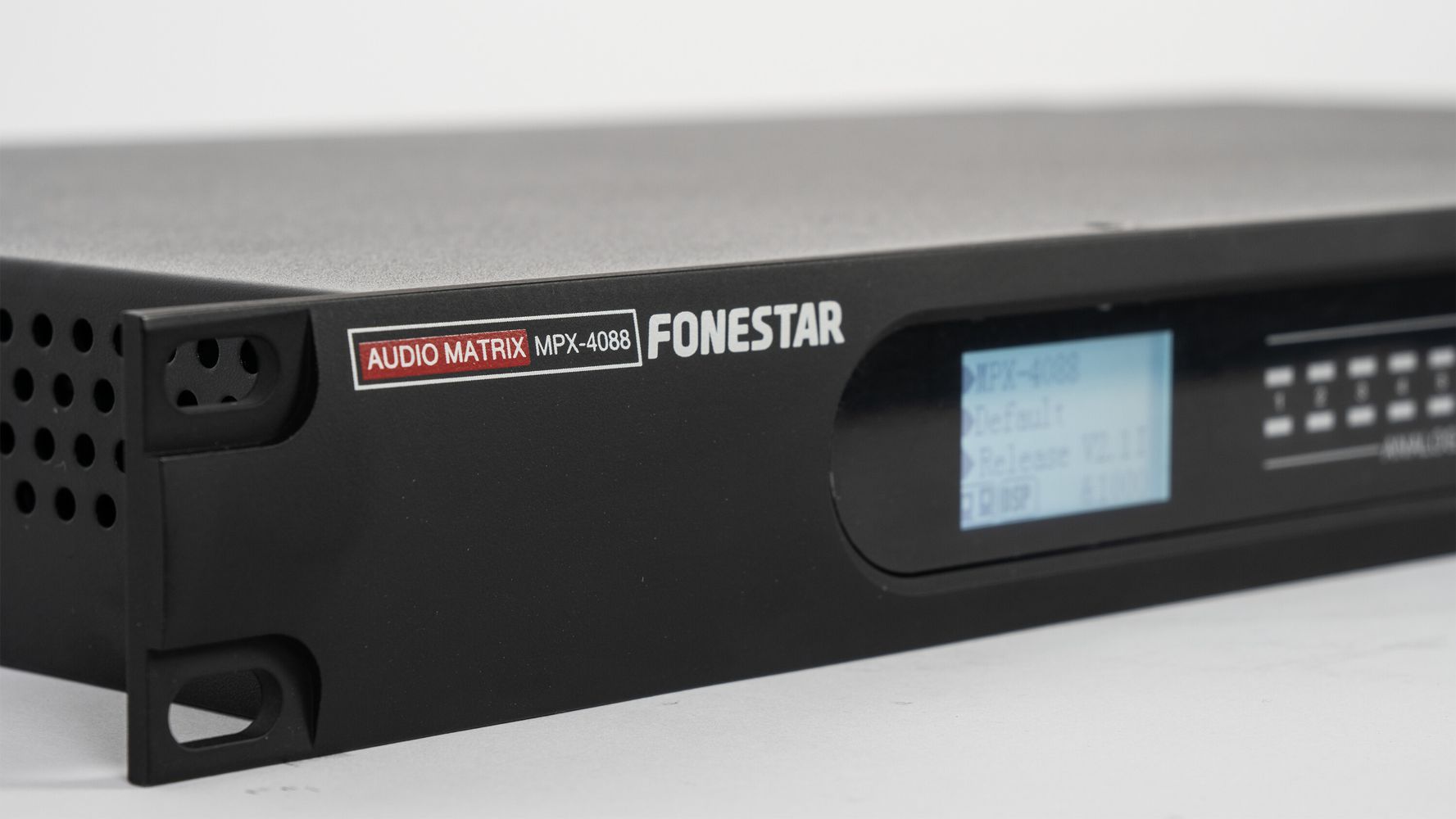

The MPX-4088 system is a highly versatile audio matrix, perfect for installations of any size, allowing a multitude of configuration options, DSP signal processing and integrated solutions to common problems such as feedback, covering almost any installation need.
It has 8 analogue input channels to 8 output zones and 4 digital configurable channels.
Analogue input channels for line signals or microphone with phantom 48 V (software selectable). Allows the selection of the music source and the volume control for each zone via PC software, Android app and iOS, or via optional zone control remote controls mod. MPX-420V, MPX-430VS or MPX-460P. In addition, the remote control MPX-460P has a touch screen and allows a more agile control.
Priority warnings via microphone with optional zone selector mod. MPX-400MIC.
It has a complete DSP in inputs and outputs with: priority control, parametric equalization, feedback suppressor, etc., all configurable via PC software.
Possibility to increase the number of remote controls with the mod. MPX-440X.
DANTE compatible via optional MPX-450D expansion module.
For installations where there are various audio sources and audience areas such as shopping malls, hotels, conference rooms, stadiums, etc.
- 4 configurable input/output digital channels for use with controls mod. MPX-400MIC, MPX-410ES, MPX-430VS
- Audio matrix with 8 analogue input channels to 8 output zones
- DANTE compatible
- LCD information display
- LED indicators for power, bus occupation, signal and failure
- Microphone with priority and optional zone selection mod. MPX-400MIC
- Optional zone controls, mod. MPX-420V and MPX-430VS for program selection in the zone where the program is broadcast
- PC control software
- 1 LAN port for connection to local area network, RJ-45
- 1 RC-Net port for matrix interconnection, RJ-45
- 2 RD ports, for mod. MPX-400MIC, MPX-410ES, MPX-420V, MPX-430VS, MPX-440X o MPX-460P, RJ-45
- 8 balanced line, euroblock 6,800 Ω, 7.74 Vrms maximum
- 1 extension link, RC-Net, RJ-45
- 2 RD ports, for mod. MPX-420V, MPX-430VS, MPX-410ES, MPX-400MIC or MPX-440X, RJ-45
- 8 balanced lines, euroblock 240 Ω, 7.74 Vrms maximum
- RS-232 port, euroblock
- PC control software (input and output routing, DSP functions, equalization, noise gates, compressor, gain control, etc.)
- TCP/IP and RS-232 protocol for integration with other systems
- 20-20,000 Hz ±1.5 dB
- Harmonic: < 0.01%
- 48 V in inputs 1 to 8, selectable with software
- Inputs 1 to 8 through level, selectable with software
- Microphone with optional zone selector mod. MPX-400MIC
- Lines > 107 dB
- Microphone > 102 dB
- 100-240 V AC, 80 W
- 483 x 44 x 256 mm depth. 1 U 19" rack
- 3.9 kg
- MPX-400MIC: Microphone with zone selector
- MPX-410ES: Audio input/output control
- MPX-420V: Zone control
- MPX-430VS: Zone control with stereo output
- MPX-440X: RD port extender
- MPX-450D: DANTE Module
- MPX-460P: Touch screen control
