The MPX-4088 system is a highly versatile audio matrix, perfect for installations of any size, allowing a multitude of configuration options, DSP signal processing and integrated solutions to common problems such as feedback, covering almost any installation need.
MPX-400MIC is a microphone with zone selector for voice output and musical warning tones for audio matrix mod. MPX-4088.
Allows selection from 1 to 32 zones.
RJ-45, Cat 5e cable system connection.
For installations where there are various audio sources and audience areas such as shopping malls, hotels, conference rooms, stadiums, etc.
Mixer/processor
Features

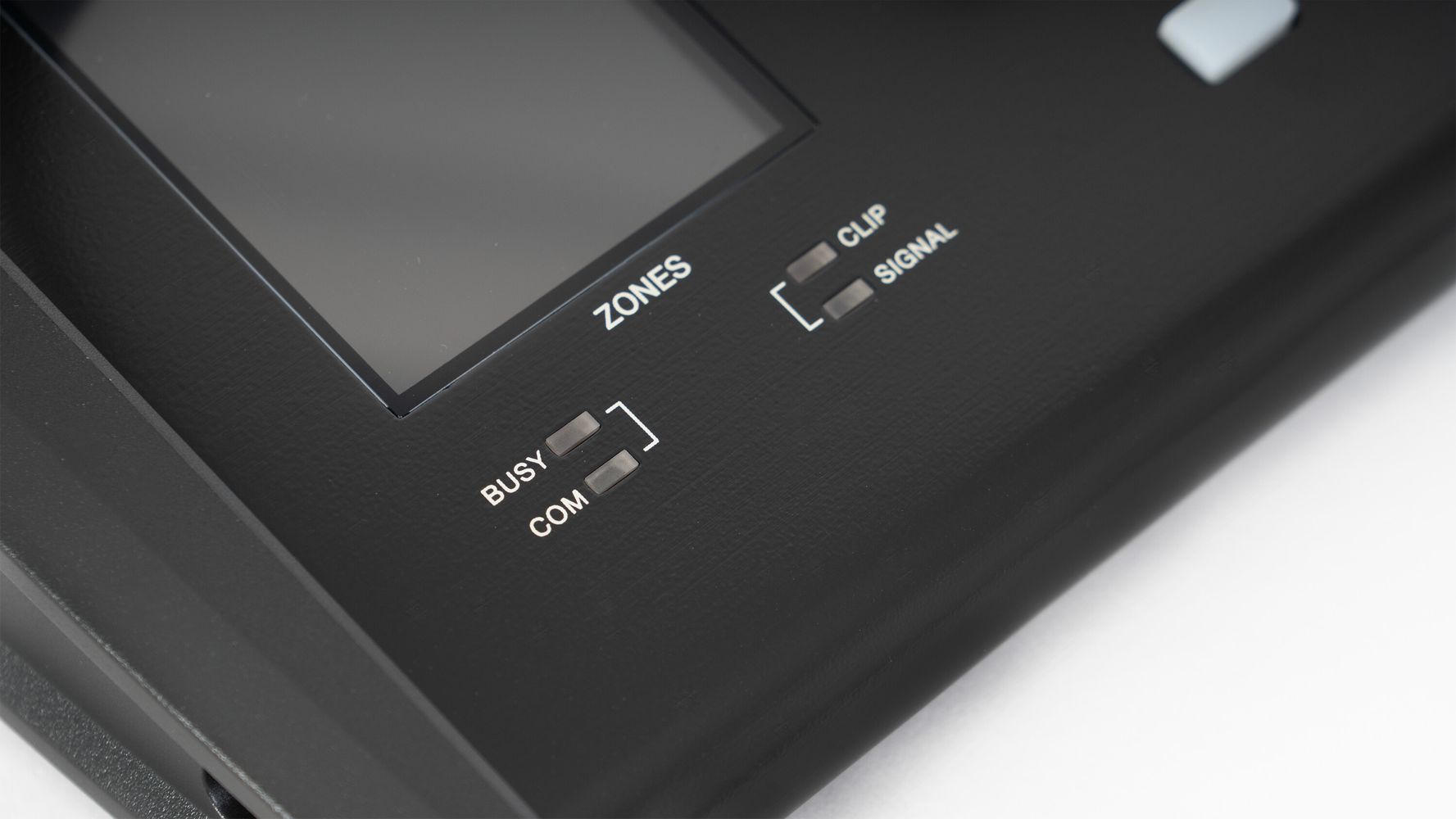

- Indicator lights for power, signal, saturation and communication status
- LCD information display
- Microphone with zone selector
- PC control software, customisation of zone names, microphone volume, volume and duration of musical tone and priority
- The total cable distance must not exceed 150 meters for a SFTP Cat 5e cable
- Zone selection and paging on the audio matrix mod. MPX-4088
Microphone
- Electret condenser with flexo and ring light
Inputs
- 1 balanced microphone, XLR 6.800 Ω
- 1 mini-USB port for uploading music alert tones in MP3 or WAV format
- 1 RD port for connection to MPX-4088 matrix, RJ-45 (see note)
Controls

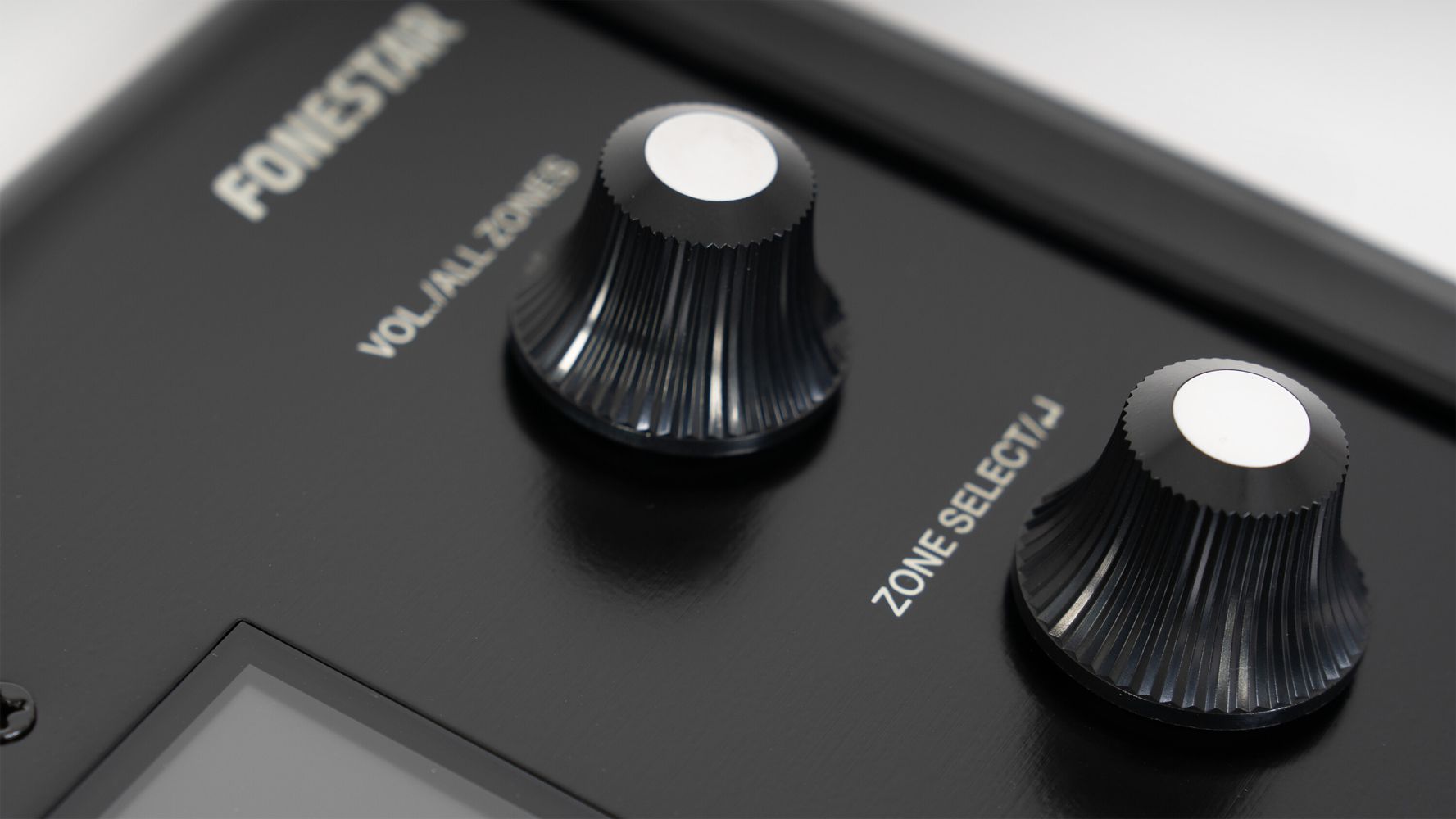

- Microphone volume control and zone selector
Connexion
- RJ-45 cable, Cat 5e
Phantom
- 12 V
Power supply
- 24 V DC, 100 mA, via RD port
Dimensions
- Base: 176 x 60 x 166 mm depth
- Microphone with flexo: 430 mm high
Accessories
- Foam windshield
