Professional 8-channel stereo mixer with PC audio card, USB recorder/player and Bluetooth® receiver.
Connect the mixer to your PC as a Plug and Play audio card on Windows and Mac. You can play audio content from your PC via USB connection.
USB player and recorder, play music or record the event without the need of a PC.
It includes a 24-bit digital effects processor (16 effects), which will give an extra touch of quality to your events.
In addition, 48 V phantom power supply is available for the use of condenser microphones.
Ideal for use at all kinds of events, press rooms, live performances, concerts, etc.
Mixer
Features
- 16 digital effects processor
- 4.2 Bluetooth Receiver
- Professional 8-channel, 2-output mixer with independent volume controls
- USB audio input for PC connection as Plug and Play audio card on Windows and Mac, allows audio playback from PC
- USB recorder/player
Inputs
- 2 balanced returns, 2 x 6.3 mm jack, 47,000 Ω 300 mV RMS
- 8 balanced XLR mics, 600 Ω 2 mV (LED peak, 1 kHz, 20 mV RMS)
- 8 unbalanced lines, 6.3 mm jack, 47,000 Ω 45 mV (LED peak, 1 kHz, 180 mV RMS)
Outputs
- 1 post-fader send, 6.3 mm jack, 5 V RMS
- 1 stereo headphone, 6.3 mm jack
- 1 stereo line, 2 x RCA, 5 V RMS
- 1 stereo main (2 x XLR or 2 x 6.3 mm jack), 5 V RMS
Controls
- Aux returns: volume control
- DSP effects processor: effect selection, repeat and slider volume control
- Main: sliding volume control
- Mic/line: low-cut filter (18 dB/octave, 75 Hz), gain, bass (±15 dB, 80 Hz), mid (±15 dB, 2,500 Hz), treble (±15 dB, 12,000 Hz), aux/EFX send, pan, mute and slide volume control
- Phones: volume control
- Post-fader aux send: volume control
- USB recorder/player: mode, play/pause/rec, song forward/reverse, bass (±15 dB, 80 Hz), treble (±15 dB, 12,000 Hz) and slider volume control
Functions
- 2-band equaliser on USB recorder/player
- 3-band EQ on channels 1 to 8
- Overload and master output level indicator lights
- Sliders per channel
USB player
- MP3 recording
- Playback formats: WAV and MP3
- Supports memory up to 128 GB
- USB port for USB stick connection or PC connection as Plug and Play audio card under Windows and Mac
Phantom
- 48 V, selectable
Response
- 20-20,000 Hz
Distortion
- Harmonic: 0.07 %
S/N ratio
- > 65 dB

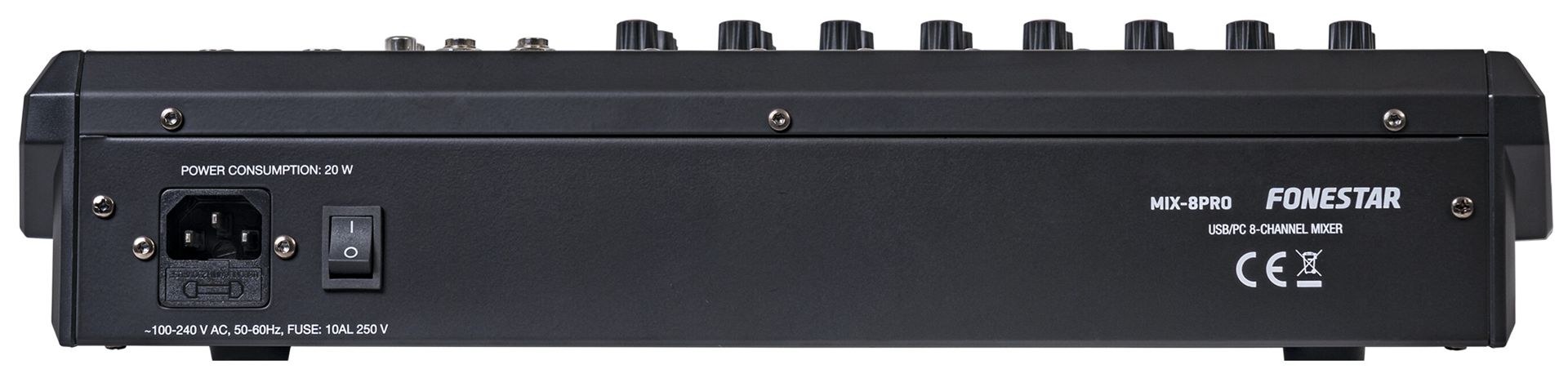

Power supply
- 100-240 V AC, 20 W maximum
Dimensions
- 390 x 85 x 320 mm depth
Weight
- 3.8 kg
Optional
- SM-8PRO: mounts for assembly in 19” rack
