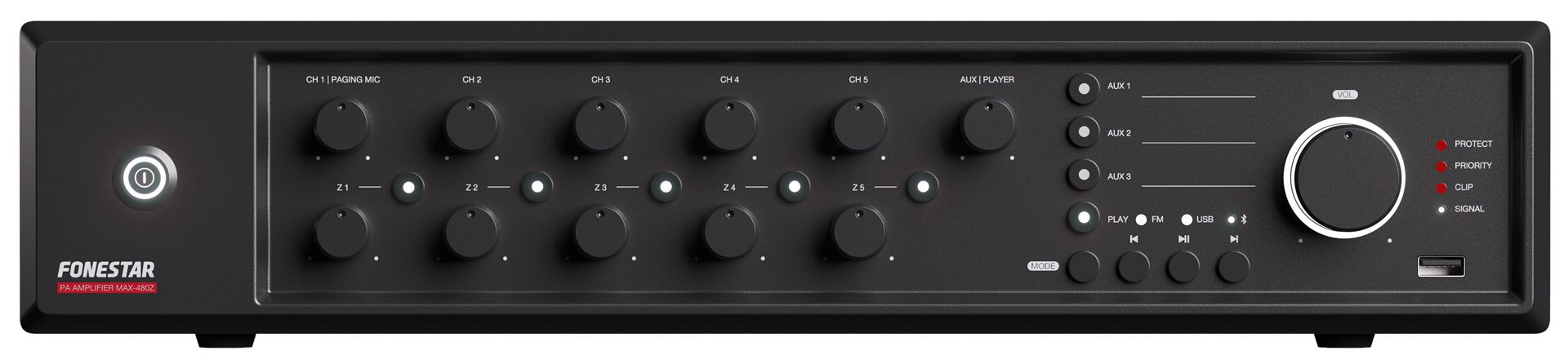

MAX-600Z multi-zone PA amplifier: power and control for your projects
The MAX-600Z is a multi-zone PA amplifier with 600 W RMS power and Class D design, ideal for projects requiring advanced sound control in multiple areas. It features a built-in Bluetooth/USB/FM player and multiple inputs for microphones, emergency systems and auxiliary sources, making it a versatile and efficient tool for professional installations.
Unrivalled advanced performance and versatility
- High power and clarity of sound: 600 W RMS with a response of 45-22,000 Hz and minimum distortion (THD+N: <0,5%).
- Multi-zone management: Individual volume control and switch-off in 5 zones, plus 100 V, 70 V and 4 Ω outputs.
- Full connectivity: Inputs for microphones (with 48V phantom), remote panel, emergency systems, AUX and integrated player.
- Priority and security: Includes ring tones, Chime generator, emergency priority and 24 V attenuators for alarms.
Why choose the MAX-600Z for your projects?
- Reliable and efficient design: Its compact and lightweight construction (11 kg) includes induction cooling, ensuring quiet and maintenance-free operation.
- Integrated protections: Soft start system, overcurrent, overload, temperature and short-circuit protection.
- Easy integration: Compatible with RJ45 cables for remote panels and zone microphones, up to 200 m in length.
The MAX-600Z is the ideal choice for installers and engineers looking for a multi-zone PA amplifier with high performance, reliability and advanced control options for demanding projects.
Amplifier
Features
- 100 V, 70V and 4 Ω outputs
- 24 V attenuator priority
- 3 auxiliary inputs
- 3rd wire output (100 V) with attenuator priority
- 5 output zones with volume control and Off
- Bluetooth/USB/FM player
- Class D PA amplifier and SMPS switch-mode power supply
- Emergency and mute input for connection to alarm and evacuation systems
- Input for remote wall panel
- Microphone inputs with mix, gain and priority level control
- Ring tone generator (Chime)
- Tone controls
- ZONEMIC-6 zone microphone input
Power
- 600 W RMS
Response
- 45-22,000 Hz (-10 dB)
Distortion
- THD+N: < 0.5% @ 1 kHz
S/N ratio
- Mic >75 dB, Line >83 dB, Aux >81 dB
Player
- 5.3 Bluetooth
- Autoplay, playback starts automatically when power is switched on
- Bluetooth/USB/FM player for ambient music playback
- Memory of last selected mode
- Play mode memory (random, repeat)
Maximum humidity
- 90%
Inputs
- 1 x Amp-in. RCA connector. signal level 1.2 V RMS (+ 1.5 dBV)
- 1 x emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or 100 V line
- 3 x AUX. 2 x RCA connectors. Signal level 316 mV RMS (-10 dBV) / 47.000 Ω
- CH 1, 2, 3, 4 and 5 mic/line balanced with 48V phantom. Combo (XLR + 6.3 mm) and euroblock. Contact closure ring tones
- Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
- Mic signal level: 5.6 mV RMS (-45 dBV) / 600 Ω
- Mute (Emergency Priority) by contact closure. Euroblock connector
- Remote wall panel, RJ45, 250 mV RMS
- ZONEMIC-6 zone microphone, RJ45, up to 200 m cable length
Outputs
- 1 3rd priority wire for attenuators (100 V)
- 1 attenuator priority, 24 V 100 mA and contact closure. Euroblock connector
- 1 Pre-out. RCA connector. Signal level 1.2 V RMS (+1.5 dBV)
- 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.
- 100 V, 70 V or 4 Ω loudspeaker output, or 5 zones of 100 V loudspeakers with 7-position volume selector and OFF (max. 240 W per zone)
Functions
- Induction cooling, fanless. Silent and maintenance-free
- Power ring light on volume control, AUX input, zone and player indicators.
- Power, signal, clip, priority activation and protection indicator lights
- Priority of inputs (in order of attenuation):
- Ring tones (chime): on microphone inputs, by contact closure
- · 100V Emergency Input with selectable signal level (VOX)
- · Auxiliary Inputs | Player
- · Channel 1 with selectable signal level (VOX)
- · Channels 2 | 3 | 4 | 5 with shared selectable signal level CH 2-3-4-5 (VOX)
- · Mute by contact closure
- · Remote wall panel
- · Zone microphone, ZONEMIC-6
Protections
- Soft start, overcurrent, overload, temperature and short circuit
Controls
- Aux or player input selector
- Master volume
- Mic/line/phantom selector, ring tones and priority
- Microphone volume
- Priority activation signal level (VOX)
- Ring tone level (chime)
- Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
- Zones with power on and 7 volume positions
Impedance
- 4 Ω, 100 V (20 Ω) and 70 V (10 Ω) line, euroblock
Temperature
- -10 ºC ~ 40 ºC
Power supply
- 230/115 V AC 50-60Hz, 680 W
- Fuse AC 230 V, 6.3 A / 115 V, 12 A
Dimensions
- 430 x 89 x 320 mm depth
Weight
- 11 kg
Accessories
- Bluetooth antenna
- Power cable
- FM antenna
- Rack mounts
Optional
- ZONEMIC-6: Paging microphone
