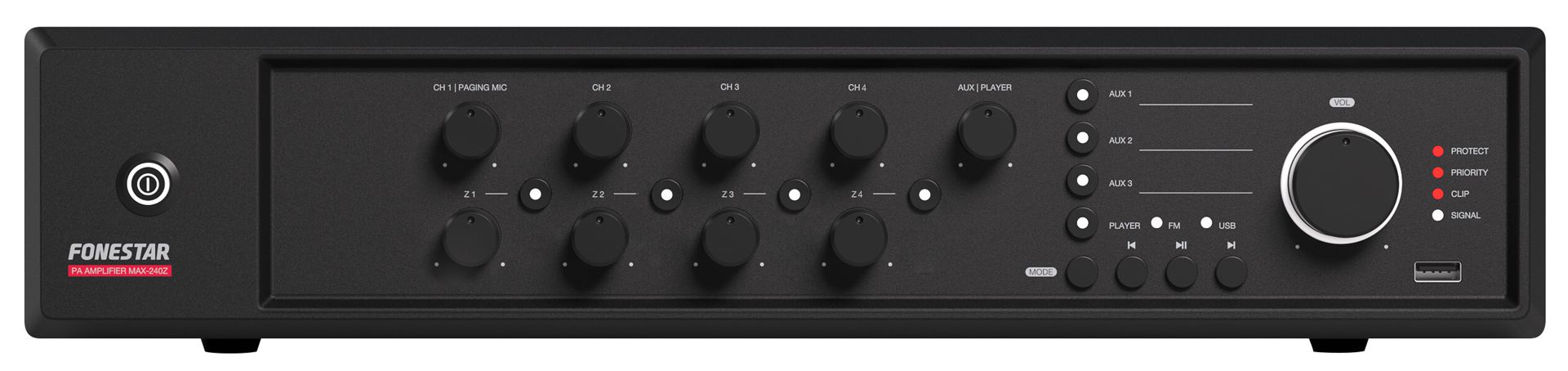

PA amplifier with USB/FM player and speaker zone selector.
Designed by Fonestar, unique, elegant and innovative.
It uses a current class D amplifier of high efficiency and reliability to offer the best sound performance. Achieves the sound coverage of any space for long periods of time.
The output zones allow different volume levels to be selected, customising the sound of each zone.
The best solution for PA and background music installations with a large number of 100 V line loudspeakers. It also has a low impedance output for transformerless loudspeakers.
It incorporates a player as a source of background music.
The microphone inputs allow for announcements with ring tones. They have priority attenuating auxiliary inputs and activate the attenuator priority (24V).
Euroblock connectors with secure, long-lasting and low-maintenance connection.
The amplifier offers user-friendly operation.
It can be used as a desktop or rack-mounted amplifier.
Perfect for PA and piped music systems with 100 V or low impedance line loudspeakers. In commercial premises, educational centres, monuments, exhibitions, bars, restaurants, etc.
- 100 V, 70V and 4 Ω outputs
- 24 V attenuator priority
- 3 auxiliary inputs
- 4 output zones with volume control and Off
- Class D PA amplifier and SMPS switch-mode power supply
- Emergency and mute input for connection to alarm and evacuation systems
- Microphone inputs with mix, gain and priority level control
- Ring tone generator (Chime)
- Tone controls
- USB/FM player
- 240 W RMS
- 45-22,000 Hz (-10 dB)
- THD+N: < 0.5% @ 1 kHz
- Mic >75 dB, Line >83 dB, Aux >81 dB
- Autoplay, playback starts automatically when power is switched on
- Memory of last selected mode
- Play mode memory (random, repeat)
- USB/FM player for background music playback
- 90%
- 1 x Amp-in. RCA connector. signal level 1.2 V RMS (+ 1.5 dBV)
- 1 x emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or 100 V line
- 3 x AUX. 2 x RCA connectors. Signal level 316 mV RMS (-10 dBV) / 47.000 Ω
- CH 1 mic/line balanced with 48V phantom. Combo connector (XLR + 6.3mm) and euroblock. Contact closure ring tones.
- CH 2, 3 and 4 microphone/line balanced with Phantom 48V. Euroblock connector. Contact closure ring tones
- Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
- Mic signal level: 5.6 mV RMS (-45 dBV) / 600 Ω
- Mute (Emergency Priority) by contact closure. Euroblock connector
- 1 attenuator priority, 24 V 100 mA and contact closure. Euroblock connector
- 1 Pre-out. RCA connector. Signal level 1.2 V RMS (+1.5 dBV)
- 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.
- 100 V, 70 V or 4 Ω speaker output, or 4 zones of 100 V speakers with volume selector 7 positions and OFF. Euroblock connector
- 100 V Emergency input with highest priority, attenuates all other inputs
- Channel 1 with priority over all other inputs, level selectable
- Channel 2, 3 and 4 with priority over auxiliary and player inputs, level selectable
- Induction cooling, fanless. Silent and maintenance-free
- Input priority (Voice over VOX inputs)
- Mute by contact closure, attenuates all inputs except the 100 V Emergency input
- Power ring light, AUX input, zone and player indicators. Power on, signal, clip, priority activation and protection
- Ring tones (chime): on microphone inputs, by contact closure
- Soft start, overcurrent, overload, temperature and short circuit
- Aux or player input selector
- Master volume
- Mic/line/phantom selector, ring tones and priority
- Microphone volume
- Priority activation signal level (VOX)
- Ring tone level (chime)
- Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
- Zones with power on and 7 volume positions
- 4 Ω, línea 100 V (42 Ω) and 70 V (20 Ω), euroblock
- -10 ºC ~ 40 ºC
- 230/115 V AC 50-60Hz, 345 W
- 430 x 89 x 320 mm depth
- 8.5 kg
- Power cable
- FM antenna
- Rack mounts
