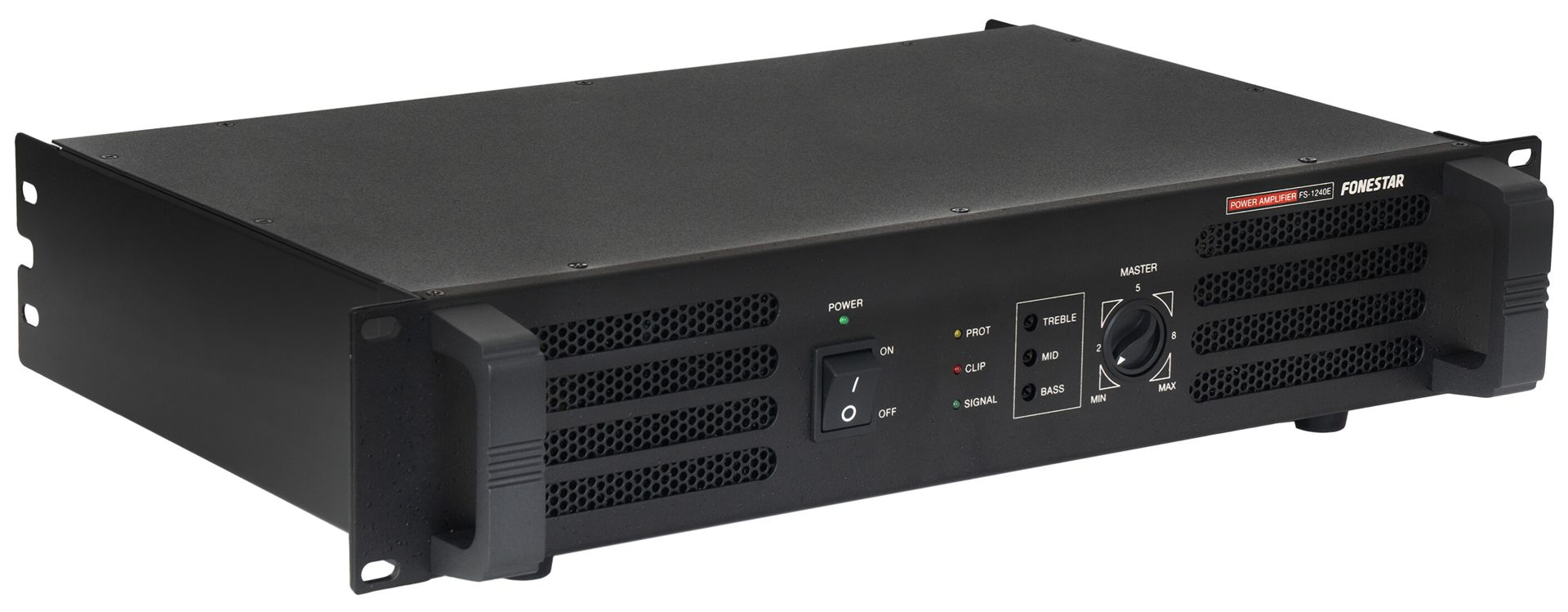

Power amplifier 300 W maximum, 240 W RMS with 4 and 8 Ω loudspeaker output, 100 and 70 V lines.
Amplifier
Features
- Mono power amplifier
Power
- 300 W max, 240 W RMS
Response
- 50-22,000 Hz ±3 dB
Distortion
- Harmonic: < 0.5%
Maximum humidity
- 95%
Inputs
- Balanced aux line XLR and 6.3 mm jack, 20 kΩ, 1 V
Outputs
- Screw terminals and banana plugs
- Link: balanced aux line XLR and 6.3 mm jack
Functions
- Forced ventilation with variable speed according to the temperature
- Automatic compression of the input signal
- LED for protection, signal peak and output signal indicators
Protections
- 3 circuits: temperature, short circuit and overload
Controls
- General volume
- Tone: bass, mids and trebles ±12 dB
Impedance
- 4 Ω, 8 Ω and 100/70 V lines
Temperature
- -20 ºC ~ 50 ºC
Power supply
- 230/115 V AC, 600 W max and 24 V DC, 480 W
Dimensions
- 483 x 89 x 329 mm depth
- 2 U 19" rack
Weight
- 11.8 kg
