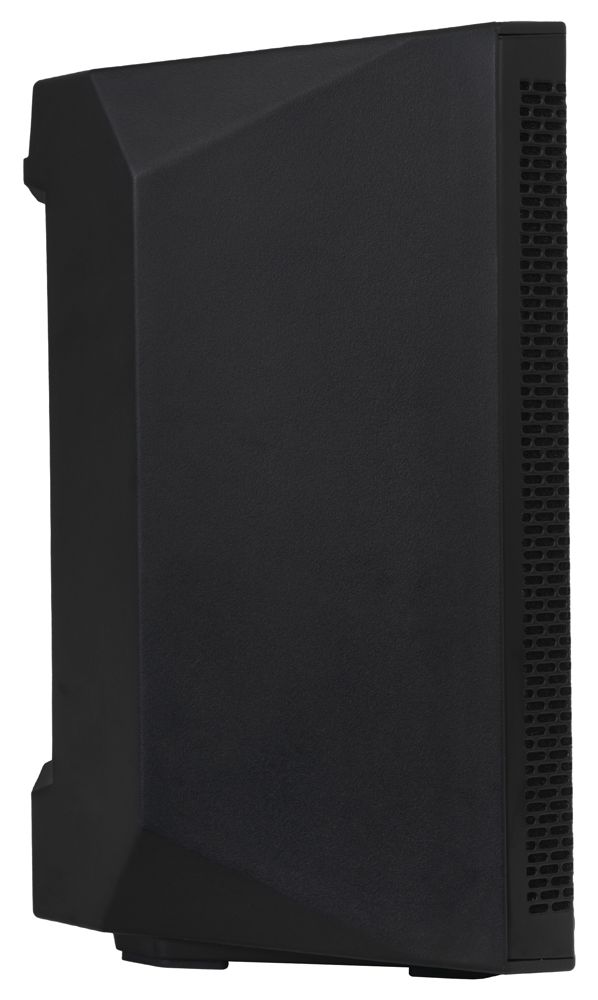

FORCE-X8 passive loudspeaker: power and sound precision for your projects
The FORCE-X8 is a high power passive loudspeaker, designed to meet the demands of professional installations and sound engineering projects. Its rugged, lightweight construction makes it easy to transport and install, while its audio quality ensures optimum performance in any application.
Exceptional performance in a compact design
- Power and precision: 600 W peak with a frequency response of 55-20,000 Hz, ideal for music and voice.
- High-quality components: 8" woofer and compression driver with oversized voice coils for a clear and powerful sound.
- Versatile design: 90° H x 60° V coverage angle for even sound distribution.
- Robust and lightweight: sturdy plastic case with handles and 35 mm tube holder.
Why choose FORCE-X8?
- Guaranteed performance: 94 dB sensitivity and sound pressure of up to 117 dB for powerful and detailed sound.
- Easy installation: two M8 suspension points and 4-pin connectors for quick integration.
- Compact and lightweight: measuring 290 x 440 x 260 mm and weighing only 9 kg, perfect for mobile or permanent installations.
This loudspeaker is the ultimate tool to ensure high quality audio in professional applications.
Features
Features
- Carrying handles.
- Durable, lightweight plastic case.
- High power passive speaker.
- Hole in the base for 35 mm tube.
Power
- 2-way (bass: 180 W + treble: 20 W)
- 200 W RMS
- 600 W Peak
Speaker(s)
- 1 x compressor driver: 1" mouth, 25 mm coil, ferrite magnet 80 x 12 mm
- 1 x woofer 8": coil 50 mm, ferrite magnet 130 x 20 mm
Freq. response
- 55-20,000 Hz
Impedance
- 8 Ω
Sensitivity
- 94 dB at 1 W/1 m
Max. sound pressure
- 117 dB at max. W/1 m
Coverage angle
- 90º H x 60º V
Connectors
- 2x 4-pin loudspeaker connector (±1: full range, ±2: N.C.)
Crossover
- Crossover frequency 2,500 Hz, -12 dB/octave
- Passive, 2-way
Colour
Black (RAL 9005)
Dimensions
- 290 x 440 x 260 mm depth
Weight
- 9 kg
