Directional sound column for outdoor use
Sound column with configurable directivity, designed to concentrate the sound in the audience area and improve speech intelligibility.
High performance, high power, multi-channel Class D amplifier providing high sound quality and high s/n ratio.
Its features make it very suitable for both indoor and outdoor PA installations, as it has water protection (IP-65), aluminium grille and body and includes stainless steel supports.
The integrated DSP allows adjustment of the beam tilt (±45°), focal length selection up to 30 m which automatically sets the beam width (95° to 5°) and 15-band graphic equalization, all configurable via IP via web browser.
For public address and professional sound installations in enclosures, closed or open, with high reverberation.
- 100 V input
- 15-band graphic equaliser
- 8-channel class D amplifier
- Digital signal processor (DSP).
- IP configuration via Web browser
- Weather-ready sound column with configurable directivity pattern
- 240 W RMS, 8 x 30 W RMS
- 8 x 5''
- 1 100 V line, waterproof connector
- 1 balanced line, waterproof connector, 1 V
- 1 RJ-45 for Web configuration
- 1 balanced line, waterproof connector, 1 V
- 15-band graphic equalization
- Adjustable sound beam tilt: ± 45°
- Automatic noise gate
- Focal length selection: up to 30 m, automatically sets the beam width (95° to 5°)
- Mute
- 80-18,000 Hz
- 92 dB (±3 dB) 1 W/1m
- 130 dB at maximum power at 1 m, Pink Noise
- 120° H x 50° V (±45°)
- IP-65

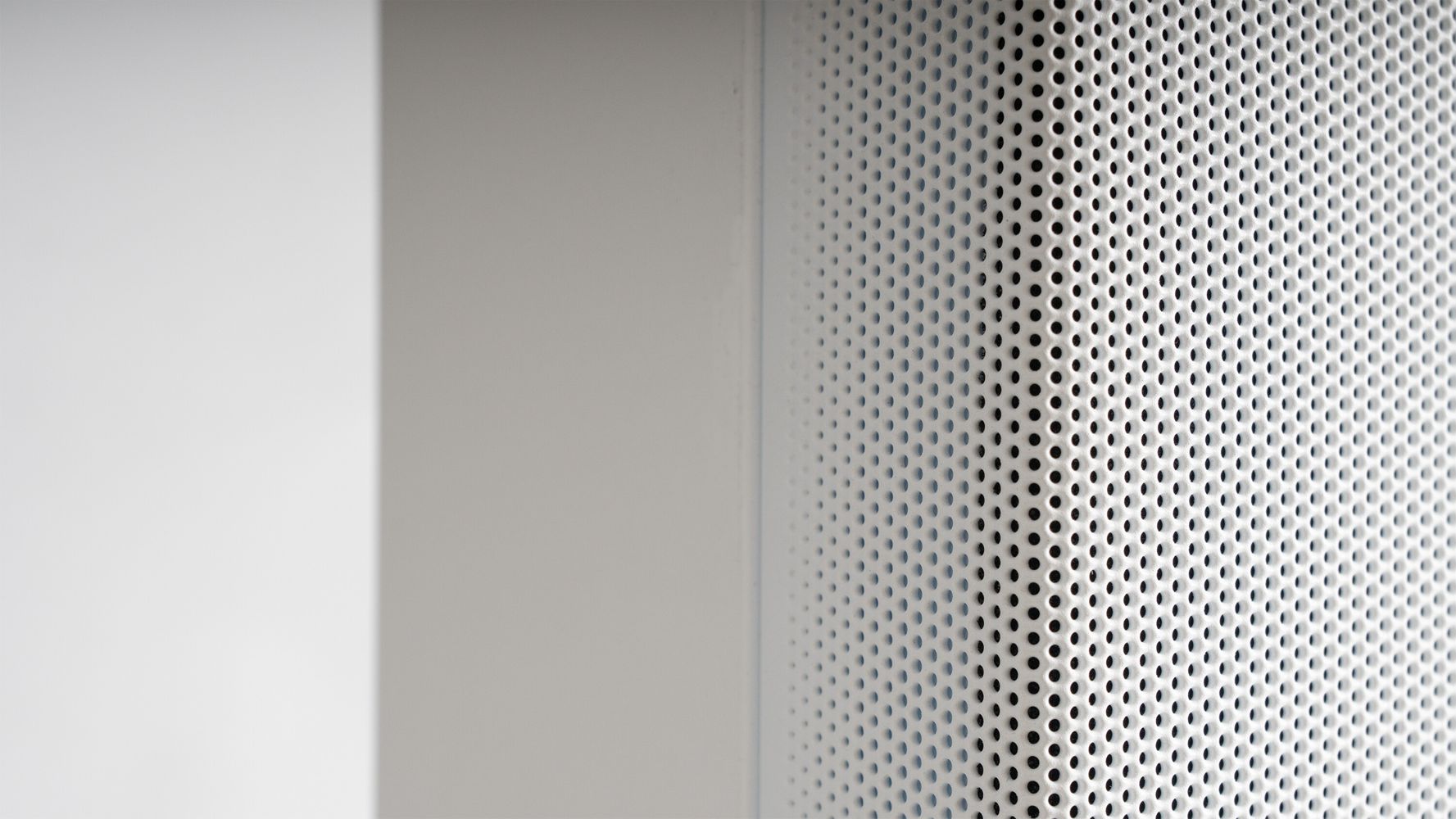

- Aluminium grille and body
- Stainless steel fixing mounts
- 115/230 V AC (internally selectable), 250 W
- 17 x 132 x 17 cm depth
- 20.5 kg
- Stainless steel fixing mounts
- Waterproof connectors
