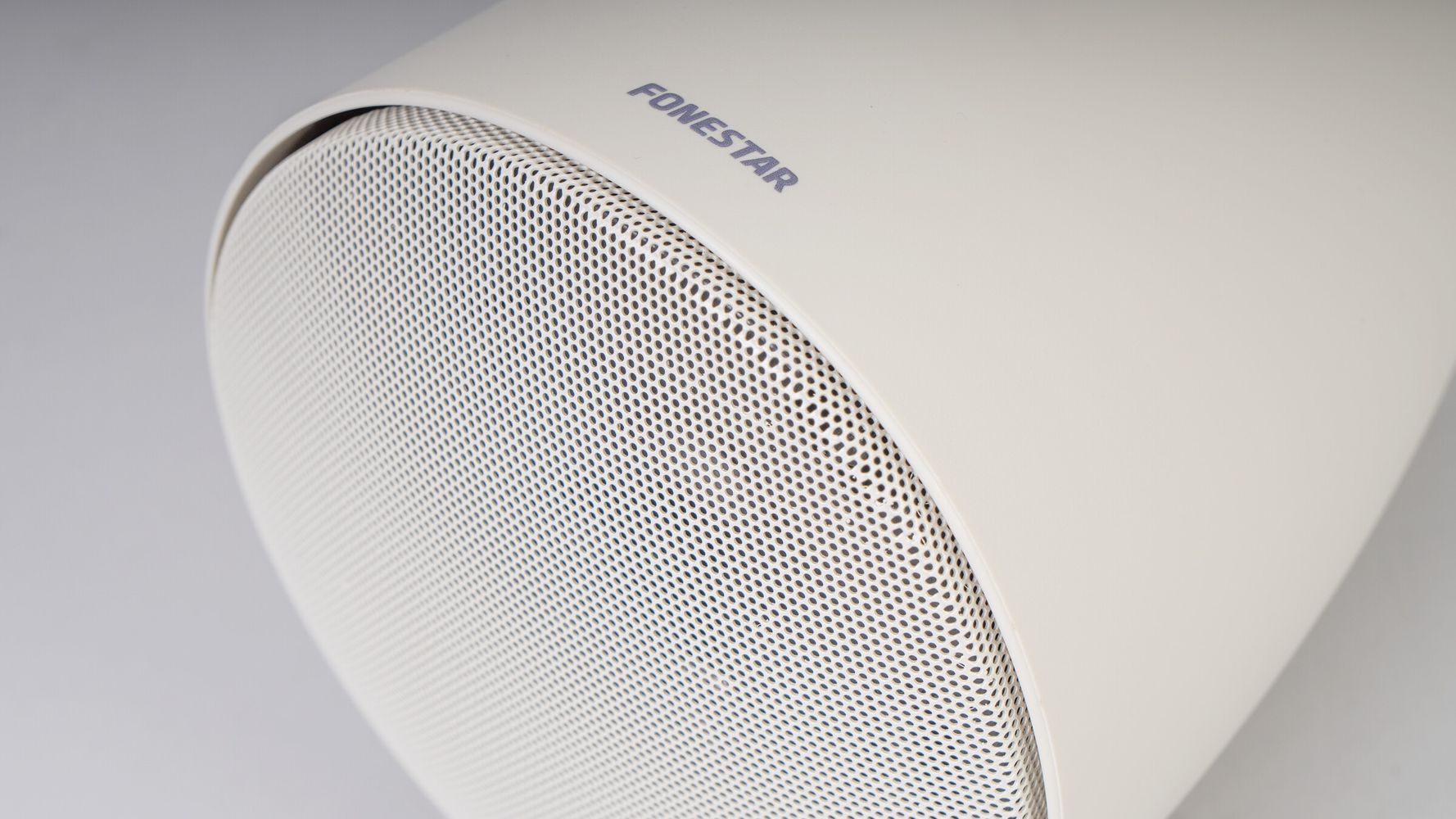

Hanging coaxial loudspeaker
Modern design that allows it to be integrated as a decorative element of your installation, making it go unnoticed.
Coaxial speaker providing a crisp, clean sound, perfect for both speech and background music.
It provides uniform horizontal coverage, suitable for solving reverberation and echo problems in rooms with high volume.
Includes ceiling mount bracket for easy installation.
Constructed with protection for protected outdoor use.
For public address and background music applications in 100 V or low impedance line installations in gymnasiums, sports facilities, industrial halls as well as restaurants, shopping areas, etc.
Features
Features
- Coaxial speaker, crisp and clean sound
- Modern design
- Pendant loudspeaker with 100 V line transformer and low impedance
- Uniform horizontal coverage
Power
- 30 W max
- 30 W RMS
Speaker(s)
- 5" woofer
- ½" tweeter
Freq. response
- 70-20,000 Hz
Impedance
- 10 W RMS@100/70 V (1,000 Ω/500 Ω)
- 15 W RMS@100/70 V (660 Ω/330 Ω)
- 20 W RMS@100/70 V (500 Ω/250 Ω)
- 30 W RMS@100/70 V (330 Ω/170 Ω)
- 30 W RMS@8 Ω
- 5 W RMS@100/70 V (2,000 Ω/1,000 Ω)
Sensitivity
- 91 dB at 1 W / 1 m
Coverage angle
- 90°
Protections
- IP-54
Material
- Extra resistant ABS and aluminium grille
Colour
White (RAL 9002)
Dimensions
- 187 mm Ø x 245 mm high
- 4 m cable
Weight
- 2.1 kg
Accessories
- Ceiling mounting bracket
