The DSA series amplifiers deliver high power and sound quality.
They are class D power amplifiers, of high efficiency and reliability, with switched power supply.
Operating and power modes:
Stereo and parallel: up to 2 x 300 W RMS @ 4 Ω
Bridge: up to 600 W RMS @ 8 Ω
High reliability with: soft start, forced ventilation with variable speed and protection circuits (temperature, short circuit, overload, VHF, DC, AC, channel limiter).
Audio inputs with standard connectors: XLR and 6.3 mm jack and volume control for each channel.

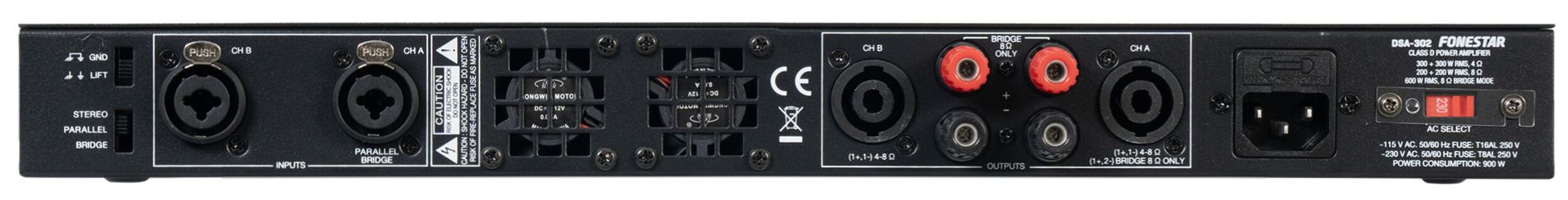

Speaker outputs with screw terminals and banana plugs or speaker connector.
Very user-friendly and minimal set-up time.
Designed for professional use in different mobile events such as discos, concerts, festivals, meetings, etc.,as well as for fixed installations in discotheques, pubs, auditoriums, etc.
- Professional digital stereo power amplifier
- High efficiency class D amplifier circuit
- Switch-mode power supply
- Stereo and parallel mode:
- 2 x 300 W RMS @ 4 Ω
- 2 x 200 W RMS @ 8 Ω
- Bridge mode: 600 W RMS @ 8 Ω
- 20-20,000 Hz
- Harmonic: < 0.1%
- > 100 dBA
- 20 V/µs
- > 200
- CH A and CH B balanced auxiliary lines, combo (XLR and 6.3 mm jack), 20.000 Ω, 650 mV RMS @ 4 Ω, 750 mV RMS @ 8 Ω
- 4-8 Ω stereo: screw terminals, banana plugs or speaker connector
- 8 Ω bridged mono: screw terminals, banana plugs or speaker connector
- Forced ventilation
- Power, signal, and peak indicator lights
- Soft start, temperature, short circuit, overload, VHF, DC and AC
- Channel limiter
- Channel volume
- Stereo/parallel/bridge operating mode selector
- 230/115 V AC, 900 W
- 482 x 44 x 200 mm depth
- 2.75 kg
